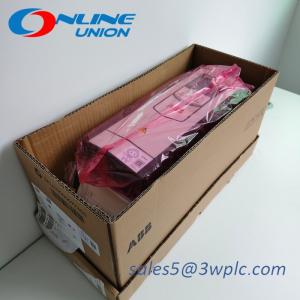

ABB ACS880-01-05A6-3+E200 ACS880 Industrial Drive
Product Description
The ACS880-01-05A6-3+E200 is a high-performance AC drive from ABB’s ACS880 series, designed for precise speed and torque control of three-phase induction and permanent magnet motors. It is part of the Compact Type Single Drive family, ideal for industrial applications requiring compact design, energy efficiency, and advanced control capabilities.
Technical Specifications
| Parameter | Details |
| Drive Type | Single-axis AC drive, Compact Type |
| Model Code | ACS880-01-05A6-3+E200 |
| Rated Output Current | 5.6 A (Continuous, at 40°C ambient) |
| Output Power Range | ~1.1 kW to 2.2 kW (at 380–480 V AC input) |
| Input Voltage | 380–480 V AC, 3-phase, 50/60 Hz |
| Input Frequency | 45–66 Hz |
| Power Loss | ~35 W (varies with load) |
| Control Mode | Scalar (V/f), Vector Control (with/without encoder), DTC (Direct Torque Control) |
| Switching Frequency | Adjustable (1–16 kHz) |
| Braking Options | DC injection braking, Overvoltage Control (OVC), External Brake Chopper |
| Communication | Standard: RS485; Optional: PROFINET, PROFIBUS, Modbus TCP/IP, CANopen |
| Safety Standards | Complies with SIL 2 (IEC 61508), PLc (ISO 13849-1) |
| Protection Features | Overload, Short Circuit, Earth Fault, Overvoltage, Undervoltage, Overheat |
| Environmental Conditions | Operating Temperature: -10°C to +50°C; Humidity: <95% RH (non-condensing) |
| Enclosure Type | IP21 (standard) |
| Dimensions (H x W x D) | ~200 mm x 90 mm x 170 mm (varies slightly by version) |
| Weight | ~2.5 kg |
| Certifications | CE, UL, cUL, RoHS |
Key Features
High Efficiency: Reduces energy consumption via optimized motor control.
Compact Design: Saves panel space and simplifies installation.
Advanced Control: Supports dynamic torque response with DTC technology.
Flexibility: Adaptable to various motor types (induction, synchronous, PM motors).
Robustness: Designed for industrial environments with vibration, dust, and temperature variations.
Key Applications
Industrial Machinery: Pumps, fans, compressors, conveyors.
Building Systems: HVAC, elevators, escalators.
Renewable Energy: Solar tracking systems, small wind turbines.
Material Handling: Cranes, hoists, automated guided vehicles (AGVs).
